Inventer On Grid Tanpa Baterai
String Inventer & Microinventer
![](https://panelsurya.co.id/wp-content/uploads/2023/03/Ongrid-String-Inverter-3kw-75-kw-300x224.png)
Inventer merupakan alat conventer listrik yang menbubah arus listrik DC (Direct Current) menjadi arus AC (Alternating Current), hasil dari arus AC tersebut memiliki voltase dan frekuensi tertentu sesuai kebutuhan beban.
Penggunaan inverter dapat ditemukan di berbagai peralatan elektronik, mulai dari yang kecil seperti komputer hinga sistem PLTS yang memiliki arus listrik yang lebih tinggi.
Inventer Sistem ON GRID Tanpa Baterai terbagi menjadi String inventer dan Microinventer.
Tipe ON GRID String Inventer
Tipe ON GRID Microinventer
ONGRID String Inventer, 1 Phase 3 kW - 7,5 kW
Model | SI-3K-1PH | SI-4K-1PH | SI-5K-1PH | SI-7.5K-1PH | |||
---|---|---|---|---|---|---|---|
Input Side | |||||||
Max. DC Input Power (kW) | 3.9 | 5.2 | 6.5 | 9.8 | |||
Max. DC Input Voltage (V) |
| ||||||
Start-up DC Input Voltage (V) | 80 | ||||||
MPPT Operating Range (V) | 70~500 | ||||||
Max. DC Input Current (A) | 13 | 13+3 | 13+3 | 13+26 | |||
Max. Short Circuit Current (A) | 19.5 | 19.5+19.5 | 19.5+39 | ||||
Number of MPPT / Strings per MPPT | 1/1 | 2/1 | 2/1+2 | ||||
Output Side | |||||||
Rated Output Power (kW) | 3 | 4 | 5 | 7.5 | |||
Max. Active Power (kW) | 3.3 | 4.4 | 5.5 | 8.25 | |||
Nominal Output Voltage / Range (V) | L/N/PE 220V/187V-242V, 230V/ 195.5V-253V (Optional) | ||||||
Rated Grid Frequency (Hz) | 50 / 60 (Optional) | ||||||
Operating Phase | Single Phase | ||||||
Rated AC Grid Output Current (A) | 13 | 17.4 | 21.7 | 32.6 | |||
Max. AC Output Current (A) | 14.3 | 19.1 | 23.9 | 35.9 | |||
Output Power Factor | 0.8 leading to 0.8 lagging | ||||||
Grid Current THD | <3% | ||||||
DC Injection Current (mA) | <0.5% | ||||||
Grid Frequency Range | 47~52 or 57~62 (Optional) | ||||||
Efficiency | |||||||
Max. Efficiency | 97.5% | 97.7% | |||||
Euro Efficiency | 97.3% | 97.5% | |||||
MPPT Efficiency | >99% | ||||||
Protection | |||||||
DC Reverse-Polarity Protection | Yes | ||||||
AC Short Circuit Protection | Yes | ||||||
AC Output Overcurrent Protection | Yes | ||||||
Output Overvoltage Protection | Yes | ||||||
Insulation Resistance Protection | Yes | ||||||
Ground Fault Monitoring | Yes | ||||||
Anti-islanding Protection | Yes | ||||||
Temperature Protection | Yes | ||||||
Integrated DC Switch | Yes | ||||||
Remote Software Upload | Yes | ||||||
Remote change of operating parameters | Yes | ||||||
Surge Protection | DC Type II / AC Type II | ||||||
General Data | |||||||
Size (mm) (WxHxD) | 280x272.5x184 | 330x323x190 | 330x410x198.5 | ||||
Weight (kg) | 4.8 | 7.5 | 15.7 | ||||
Topology | Transformerless | ||||||
Internal Consumption | <1W (Night) | ||||||
Running Temperature | -25~65oC, >45oC derating | ||||||
Ingress Protection | IP65 | ||||||
Noise Emission (Typical) | <25 dB | ||||||
Cooling Concept | Natural Cooling | ||||||
Max. Operating Altitude Without Derating | 2000m | ||||||
Warranty | 5 years | ||||||
Grid Connection Standard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||||||
Operating Surroundings Humidity | 0-100% | ||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
Features | |||||||
DC Connection | MC-4 mateable | ||||||
AC Connection | IP65 rated plug | ||||||
Display | LCD1602 | ||||||
Interface | RS485/RS232/Wifi/LAN |

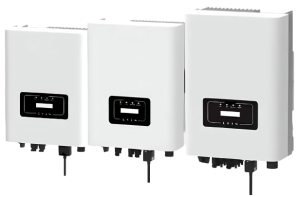

ONGRID String Inventer, 3 Phase 6 kW - 30kW
Model | SI-6K-3PH | SI-10K-3PH | SI-15K-3PH | SI-20K-3PH | SI-30K-3PH |
---|---|---|---|---|---|
Input Side | |||||
Max. DC Input Power (kW) | 7.8 | 13 | 19.5 | 26 | 39 |
Max. DC Input Voltage (V) |
| ||||
Start-up DC Input Voltage (V) | 140 | 250 | |||
MPPT Operating Range (V) | 120~850 | 200~850 | |||
Max. DC Input Current (A) | 13+3 | 13+26 | 32+32 | 40+40 | |
Max. Short Circuit Current (A) | 19.5+19.5 | 19.5+39 | 48+48 | 60+60 | |
Number of MPPT / Strings per MPPT | 2/1 | 2/1+2 | 2/2 | 2/3 | |
Output Side | |||||
Rated Output Power (kW) | 6 | 10 | 15 | 20 | 30 |
Max. Active Power (kW) | 6.6 | 11 | 16.5 | 22 | 33 |
Nominal Output Voltage / Range (V) | 3L/N/PE 380V/323V-418V, 400V/ 340V-440V | ||||
Rated Grid Frequency (Hz) | 50 / 60 (Optional) | ||||
Operating Phase | Three Phase | ||||
Rated AC Grid Output Current (A) | 8.7 | 14.5 | 21.7 | 29 | 43.5 |
Max. AC Output Current (A) | 9.6 | 15.9 | 23.9 | 31.9 | 47.9 |
Output Power Factor | 0.8 leading to 0.8 lagging | ||||
Grid Current THD | <3% | ||||
DC Injection Current (mA) | <0.5% | ||||
Grid Frequency Range | 47~52 or 57~62 (Optional) | ||||
Efficiency | |||||
Max. Efficiency | 98.3% | 98.5% | 98.6% | ||
Euro Efficiency | 97.5% | 97.8% | |||
MPPT Efficiency | >99% | ||||
Protection | |||||
DC Reverse-Polarity Protection | Yes | ||||
AC Short Circuit Protection | Yes | ||||
AC Output Overcurrent Protection | Yes | ||||
Output Overvoltage Protection | Yes | ||||
Insulation Resistance Protection | Yes | ||||
Ground Fault Monitoring | Yes | ||||
Anti-islanding Protection | Yes | ||||
Temperature Protection | Yes | ||||
Integrated DC Switch | Yes | ||||
Remote Software Upload | Yes | ||||
Remote change of operating parameters | Yes | ||||
Surge Protection | DC Type II / AC Type II | ||||
General Data | |||||
Size (mm) (WxHxD) | 330x457x185 | 333x472x202 | 330x508x206 | 362x577x215 | |
Weight (kg) | 10 | 15 | 20.8 | 25.5 | |
Topology | Transformerless | ||||
Internal Consumption | <1W (Night) | ||||
Running Temperature | -25~65oC, >45oC derating | ||||
Ingress Protection | IP65 | ||||
Noise Emission (Typical) | <25 dB | <45 dB | |||
Cooling Concept | Natural Cooling | Smart Cooling | |||
Max. Operating Altitude Without Derating | 2000m | ||||
Warranty | 5 years | ||||
Grid Connection Standard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||||
Operating Surroundings Humidity | 0-100% | ||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Features | |||||
DC Connection | MC-4 mateable | ||||
AC Connection | IP65 rated plug | ||||
Display | LCD1602 | ||||
Interface | RS485/RS232/Wifi/LAN |
Note : Model, varian, harga, dan spesifikasi dapat berubah sewaktu-waktu tanpa pemberitahuan

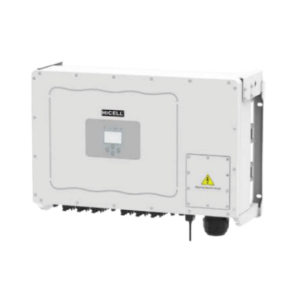

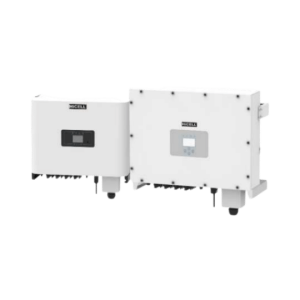

ONGRID String Inventer, 3 Phase 50 kW - 100 kW
Model | SI-50K-3PH | SI-60K-3PH | SI-70K-3PH | SI-80K-3PH | SI-100K-3PH |
---|---|---|---|---|---|
Input Side | |||||
Max. DC Input Power (kW) | 65 | 78 | 91 | 104 | 150 |
Max. DC Input Voltage (V) |
| ||||
Start-up DC Input Voltage (V) | 250 | ||||
MPPT Operating Range (V) | 200~850 | ||||
Max. DC Input Current (A) | 40+40+40+40 | 40+40+40+40+40+40 | |||
Max. Short Circuit Current (A) | 60+60+60+60 | 60+60+60+60+60+60 | |||
Number of MPPT / Strings per MPPT | 4/3 | 4/4 | 6/4 | ||
Output Side | |||||
Rated Output Power (kW) | 50 | 60 | 70 | 80 | 100 |
Max. Active Power (kW) | 55 | 66 | 77 | 88 | 110 |
Nominal Output Voltage / Range (V) | 3L/N/PE 380V/323V-418V, 400V/340V-440V | ||||
Rated Grid Frequency (Hz) | 50 / 60 (Optional) | ||||
Operating Phase | Three Phase | ||||
Rated AC Grid Output Current (A) | 72.4 | 87 | 101.5 | 115.9 | 144.9 |
Max. AC Output Current (A) | 79.7 | 95.7 | 111.6 | 127.5 | 159.4 |
Output Power Factor | 0.8 leading to 0.8 lagging | ||||
Grid Current THD | <3% | ||||
DC Injection Current (mA) | <0.5% | ||||
Grid Frequency Range | 47~52 or 57~62 (Optional) | ||||
Efficiency | |||||
Max. Efficiency | 98.7% | ||||
Euro Efficiency | 98% | 98.3% | |||
MPPT Efficiency | >99% | ||||
Protection | |||||
DC Reverse-Polarity Protection | Yes | ||||
AC Short Circuit Protection | Yes | ||||
AC Output Overcurrent Protection | Yes | ||||
Output Overvoltage Protection | Yes | ||||
Insulation Resistance Protection | Yes | ||||
Ground Fault Monitoring | Yes | ||||
Anti-islanding Protection | Yes | ||||
Temperature Protection | Yes | ||||
Integrated DC Switch | Yes | ||||
Remote Software Upload | Yes | ||||
Remote change of operating parameters | Yes | ||||
Surge Protection | DC Type II / AC Type II | ||||
General Data | |||||
Size (mm) (WxHxD) | 647.5x537x303.5 | 838x568x323 | |||
Weight (kg) | 44.5 | 73.7 | |||
Topology | Transformerless | ||||
Internal Consumption | <1W (Night) | ||||
Running Temperature | -25~65oC, >45oC derating | ||||
Ingress Protection | IP65 | ||||
Noise Emission (Typical) | <45 dB | <55 dB | |||
Cooling Concept | Smart Cooling | ||||
Max. Operating Altitude Without Derating | 2000m | ||||
Warranty | 5 years | ||||
Grid Connection Standard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||||
Operating Surroundings Humidity | 0-100% | ||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Features | |||||
DC Connection | MC-4 mateable | ||||
AC Connection | IP65 rated plug | ||||
Display | LCD1602 | ||||
Interface | RS485/RS232/Wifi/LAN |

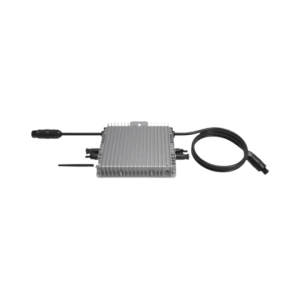

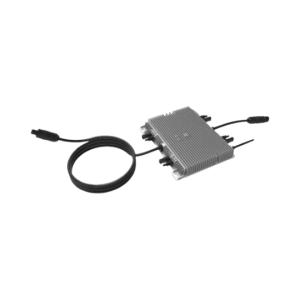

ONGRID Microinventer, 1 Phase 1 kW - 2 kW
Model | MI-1000 | MI-2000 | |||
---|---|---|---|---|---|
Input Data (DC) | |||||
Recommended Input Power (STC) | 210~600W (2 Pieces) | 210~600W (4 Pieces) | |||
Maximum input DC Voltage |
| ||||
MPPT Voltage Range | 25~55V | ||||
Operating DC Voltage Range | 20~60V | ||||
Max. DC Short Circuit Current | 19.5Ax2 | 19.5Ax4 | |||
Max. input Current | 13Ax2 | 13Ax4 | |||
Number of MPPT / Strings per MPPT | 2/1 | 4/1 | |||
Output Data (AC) | |||||
Rated Output Power (kW) | 1000W | 2000W | |||
Rated Output Current | 4.4A | 8.7A | |||
Nominal Voltage / Range (this may vary with grid standards) | 220V/187~242V | 220V/176~242V | |||
Nominal Frequency / Range | 50 / 60 Hz | ||||
Extended Frequency / Range | 47.5~51.5Hz | ||||
Power Factor | >0.99 | ||||
Maximum units per branch | 5 | 3 | |||
Efficiency | |||||
CEC Weighted Efficiency | 95% | ||||
Peak Inventer Efficiency | 96.5% | ||||
Static MPPT Efficiency | 99% | ||||
Night Time Power Consumption | 50mW | ||||
Mechanical Data | |||||
Ambient Temperature Range | -40~65oC | ||||
Size (mm) (Without mounting bracket and cable (WxHxD) | 212x230x40 | 267x300x42 | |||
Weight (kg) | 3.15 | 5.2 | |||
Cooling Concept | Natural cooling | ||||
Enclosure Environmental Rating | IP67 | ||||
Features | |||||
Compability | Compatible with 60~70 cell PV modules | ||||
Communication | Power line / WIFI / Zigbee | ||||
Warranty | 10 years |
